The Master Coat™ Powder Coating Machine System

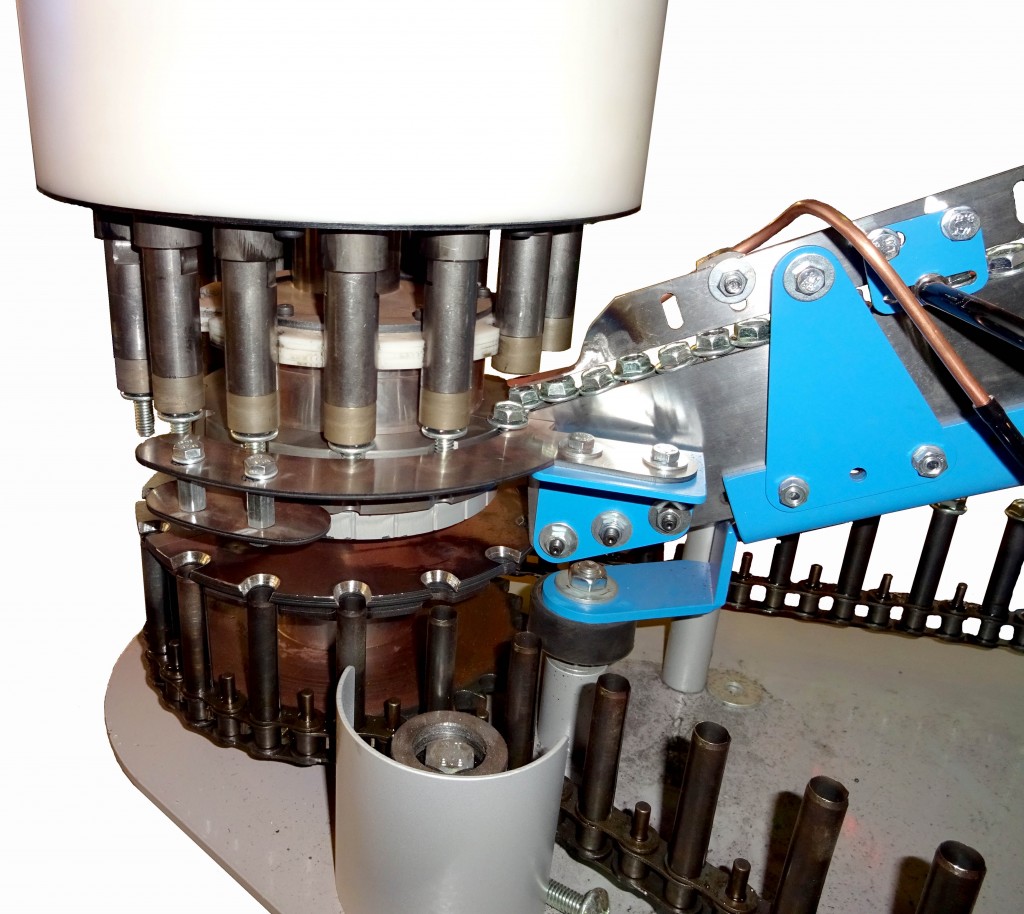

  • Assembly HeadThe Master Coat™ Powder Coating Machines have been built by Aztec Nordic Ltd since 1995. The Master Coat™  machines are each capable of assembling screws and washers and powder coating them in a continuous process at speeds up to or even exceeding 700 parts per minute.

    The heart of the Master Coat™ machine is the screw and washer assembling unit. The capacity of the entire machine relies on the smooth operation of the assembling process and experience has shown that our assembling unit is very long lasting and flexible, enabling the machine to assemble various combinations of screw and washer and being very easy to adjust for smooth operation.

    The machine is controlled from an operators panel consisting of a touch panel and only a few physical buttons. The graphical user interface is very easy to learn and normally an operator is able to run the machine after a training period of only one or two days.

  • Screw size range: 4.8 mm (#10) to 6.3 mm (#14)
    Screw length range: 19 mm (¾”) to 105 mm (4”)
    Washer size range: Ø10 mm to Ø19 mm
    Powder coating system: Nordson Tribo-electric
    Capacity: up to 550 parts/min

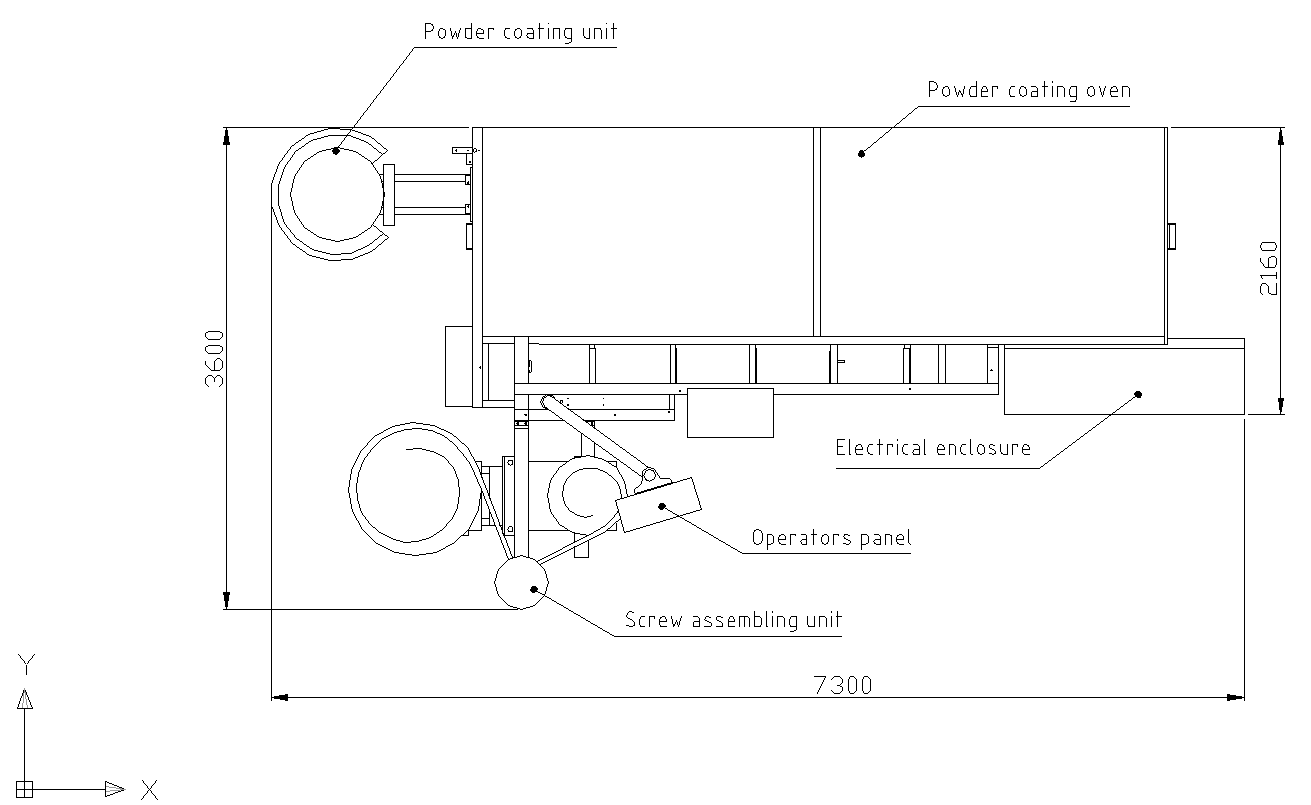

    Master Coat Machines Document

  • Now up to 300 mm long screws!

    Screw size range: 4.8 mm (#10) to 6.3 mm (#14)
    Screw length range: 19 mm (¾”) to 300 mm (12”)
    Washer size range: Ø10 mm to Ø25 mm
    Powder coating system: Nordson Tribo-electric
    Capacity: up to 250 parts/min

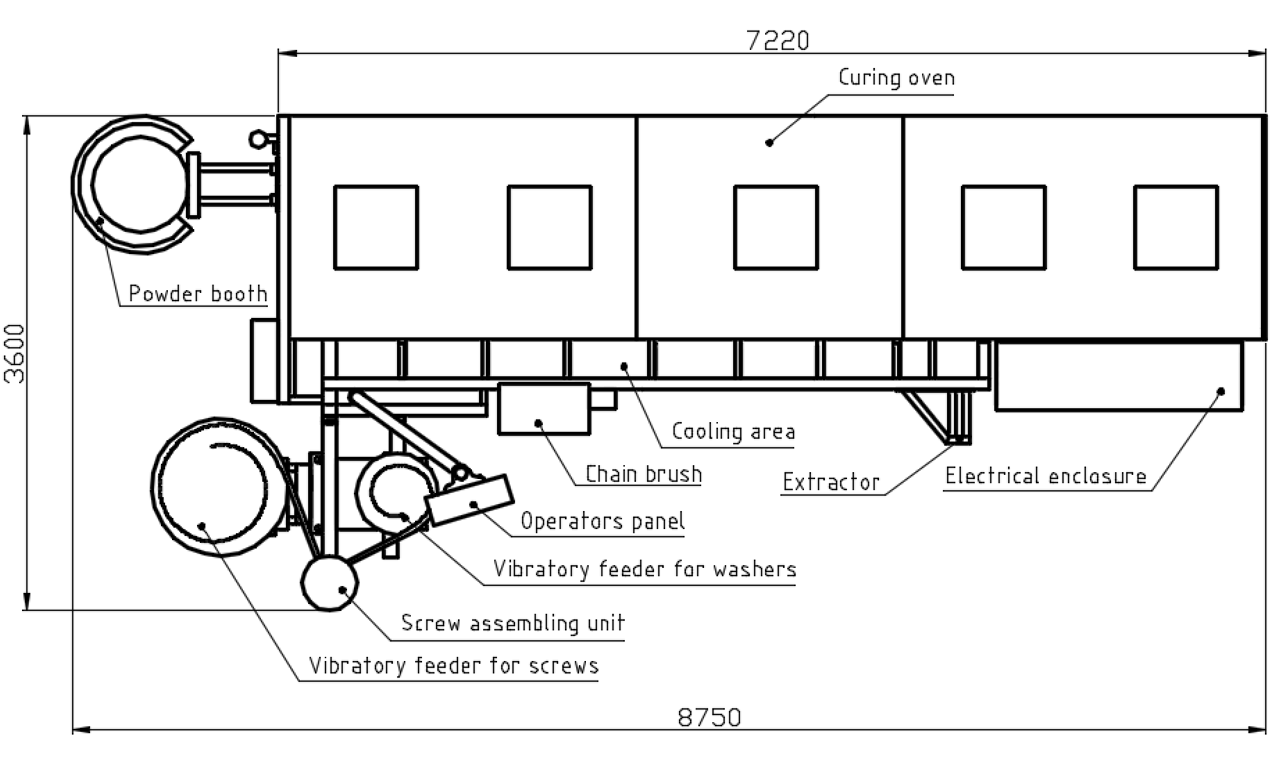

    Layout P81

  • Screw size range: 4.8 mm (#10) to 6.3 mm (#14)
    Screw length range: 19 mm (¾”) to 105 mm (4”)
    Washer size range: Ø10 mm to Ø19 mm
    Powder coating system: Nordson Tribo-electric
    Capacity: up to 700 parts/min

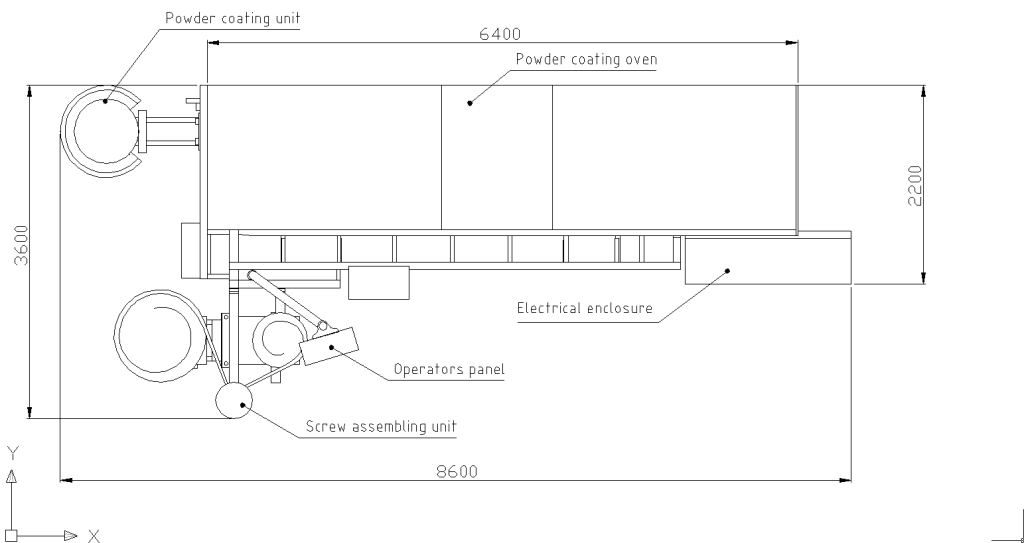

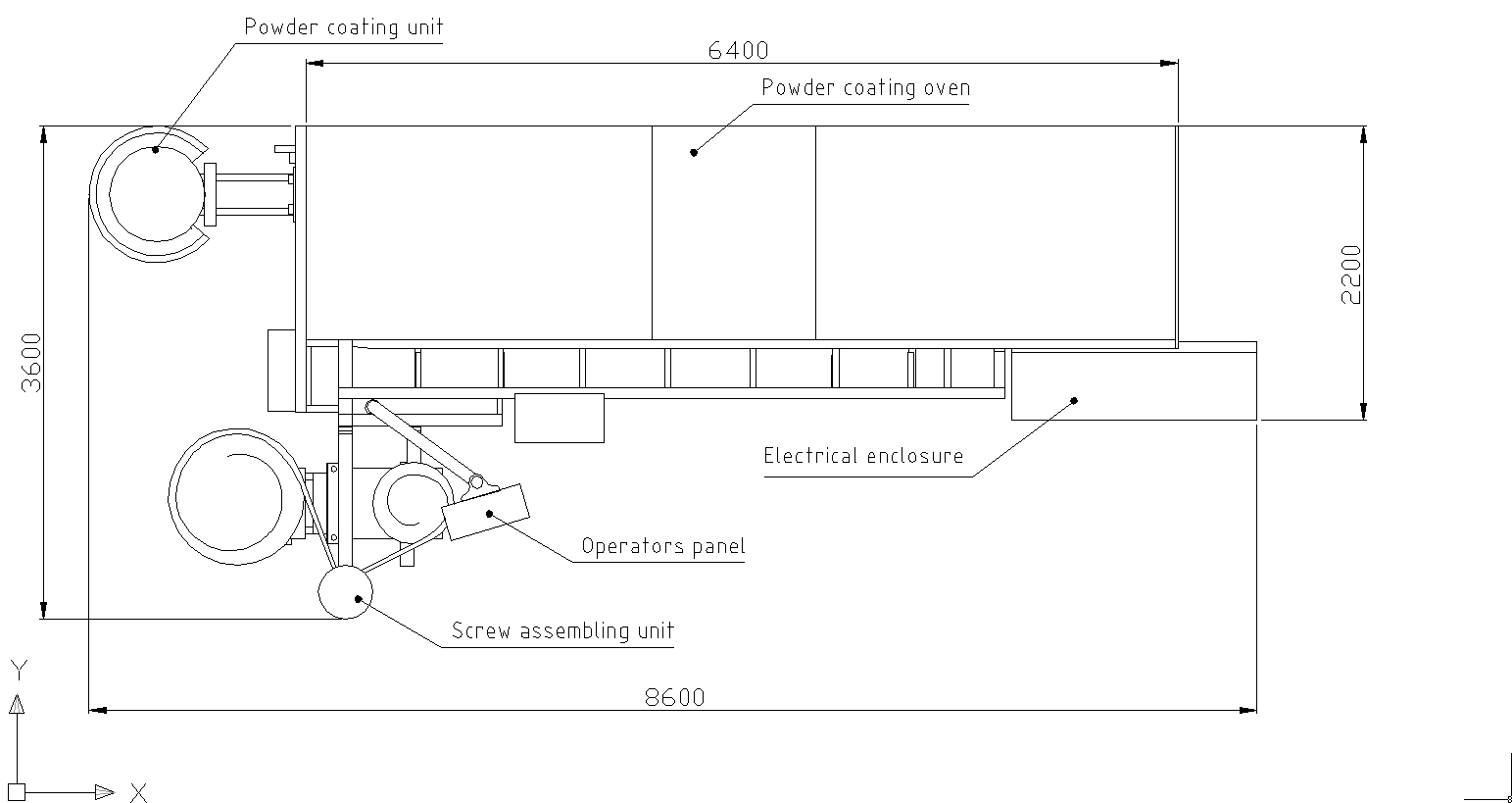

    Master Coat Machines Document

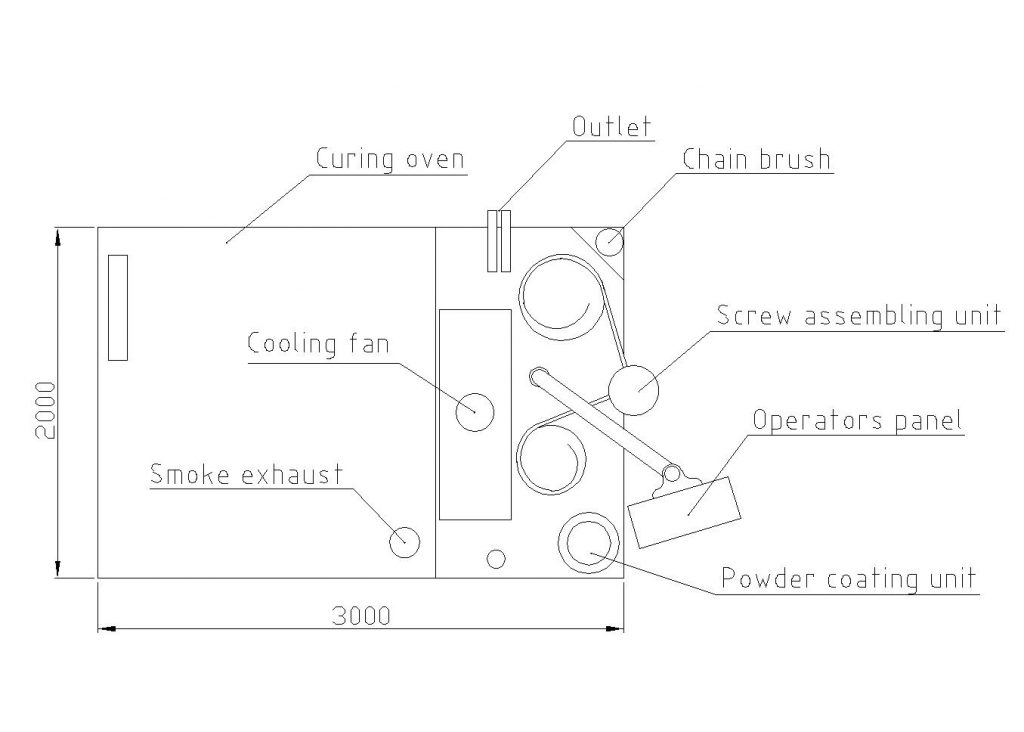

  • The new P130-6, slightly larger and more capacity

    Screw size range: 3.5 mm (#6) to 6.3 mm (#14)
    Screw length range: 19 mm (¾”) to 65 mm (1½”)
    Washer size range: Ø8 mm to Ø19 mm
    Powder coating system: Nordson Tribo-electric
    Capacity: up to 200 parts/min

    SONY DSC

    SONY DSC

  • The Master Coat™ Dual Layer Powder Coating Machine

    Screw size range: 4.8 mm (#10) to 6.3 mm (#14)
    Screw length range: 19 mm (¾”) to 105 mm (4”)
    Washer size range: Ø10 mm to Ø19 mm
    Powder coating systems: 2 x Nordson Tribo-Electric
    Capacity: up to 550 parts/min

    The new P160 series machine.

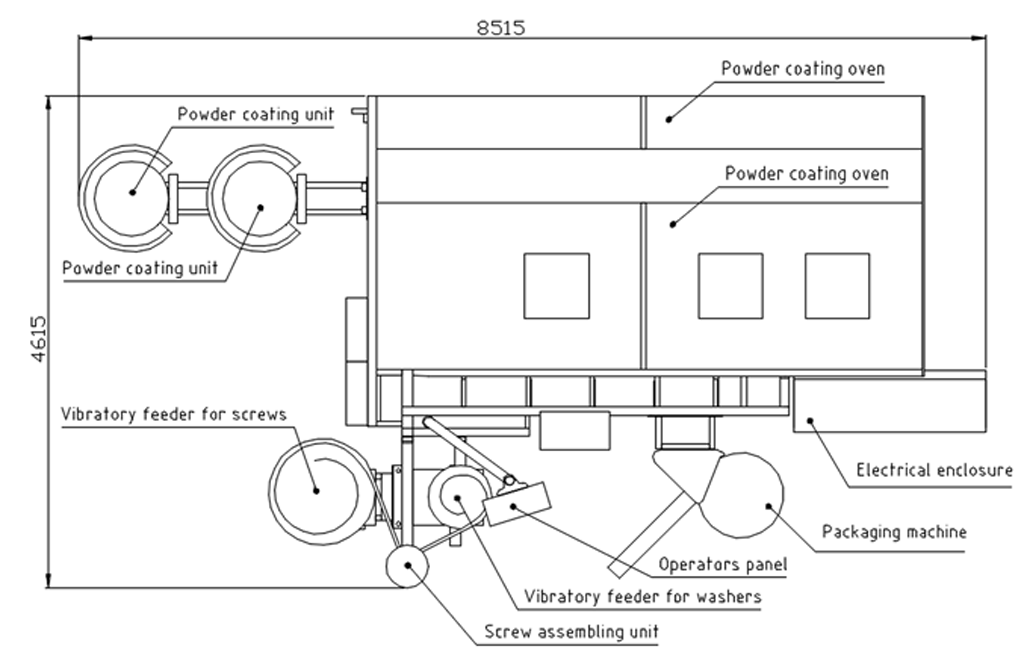

    Layout P160

  • The new Master Coat™ Powder Coating Machine for large bolts

    Screw size range: M6 (1/4″) to M12 (1/2″)
    Screw length range: 19 mm (¾”) to 50 mm (2”)
    Powder coating systems: Nordson Tribo-Electric
    Capacity: up to 200 parts/min

    The new P150 series machine.
